Solid-state Gallium Nitride (GaN) high-power microwave systems disable drone swarms by projecting microsecond bursts of directed electromagnetic radiation that induce 15 to 30-volt transient surges across unshielded printed circuit board traces. Unlike high-energy lasers that require 2.5 to 5.0 seconds of continuous optical tracking per target to achieve thermal ablation, active electronically steered HPM arrays neutralize dozens of incoming autonomous airframes simultaneously across wide volumetric sectors.
The operational reality of modern drone warfare has exposed a fatal throughput constraint in single-target air defense. When thirty loitering munitions attack an asset simultaneously along coordinated vectors, shooting them down sequentially is mathematically impossible. A 100-kilowatt directed-energy laser, such as the tactical configurations evaluated in layered air defense architectures, relies on thermal ablation: photon absorption must physically heat and melt structural composite or ignite propellant tanks. Under ideal laboratory conditions, this requires a stabilized optical tracking dwell time of roughly 3 to 5 seconds per target. In dense fog, battlefield smoke, or sandstorms, optical scattering degrades laser beam irradiance inversely with range, cutting effective engagement distances down to several hundred meters. Even without atmospheric interference, a single laser aperture firing continuously can service at most 10 to 12 targets per minute. Against a synchronized 40-drone saturation salvo, the engagement timeline expires before the fourth drone is engaged.
Traditional radio-frequency jamming fails on a different axis. Commercial RF jammers depend entirely on severing the pilot control link or spoofing GNSS coordinates. As we observed when analyzing how fiber-optic guidance tethers bypass electronic countermeasures, airframes that pay out optical fiber or execute local visual-inertial odometry emit zero detectable RF signatures and listen to no satellite broadcasts. Broad-spectrum jamming floods the airspace with RF noise, yet the flight controller continues navigating on internal IMUs and edge vision inference loops.
High-power microwave directed energy addresses both failure modes by attacking the physics of semiconductor junctions rather than the communications protocol. Modern HPM arrays do not rely on fragile, single-frequency vacuum tubes such as legacy magnetrons or klystrons, which suffered from multi-minute warm-up times, massive cooling loops, and fixed resonant cavities easily countered by targeted shielding. The contemporary shift centers on active electronically steered solid-state arrays powered by Gallium Nitride on Silicon Carbide (GaN-on-SiC) Line-Replaceable Amplifier Modules (LRAMs), the same wide-bandgap semiconductor architecture driving next-generation tactical radars and indigenous test beds like the DRDO microwave evaluation complex.
The Silicon Physics of Field-Induced Semiconductor Failure
The lethality of an HPM pulse stems from electromagnetic coupling into internal circuitry through two distinct entry pathways: front-door coupling and back-door coupling.
Front-door coupling occurs when microwave energy enters an airframe through intentional RF apertures, such as video transmitter antennae, GPS patch receivers, or telemetry transceivers. Because these antennae are tuned to capture incoming electromagnetic signals, incident microwave radiation within or adjacent to their operating bandwidth couples directly into low-noise amplifiers (LNAs) and mixer diodes with minimal transmission loss. The incoming pulse generates instantaneous voltages thousands of times higher than the design rating of the RF frontend, vaporizing sub-micron transistor junctions within nanoseconds.
Back-door coupling bypasses RF antennae entirely. Incident electromagnetic radiation penetrates through non-conductive carbon-fiber airframes, seam gaps between structural panels, unshielded wiring harnesses, and battery power leads. Once inside the chassis, the rapidly oscillating electric field induces transient surface currents and high-voltage spikes across printed circuit board traces, which act as distributed parasitic antennas.
In modern 3.3-volt and 1.8-volt logic circuits powering flight microcontrollers (such as STM32-based autopilot boards) and brushless motor Electronic Speed Controllers (ESCs), the gate oxide insulating layer of a MOSFET transistor is only 2 to 5 nanometers thick. When an induced transient spike exceeds the dielectric breakdown threshold of the silicon dioxide layer—typically between 15 and 30 volts—dielectric breakdown occurs. This triggers either thermal latchup, which locks the processor into an unrecoverable hard reset state, or physical punch-through that permanently shorts the silicon gate to ground.
Field Propagation Dynamics: The root-mean-square electric field intensity E (Volts/meter) scales directly with the square root of peak transmitter pulse power Pt and antenna aperture gain Gt, falling inversely with slant range R in free-space propagation.
Arithmetic Reveal (Hook 3): When an electric field E of 2,000 V/m impinges upon an exposed 10 cm power rail trace (effective dipole length leff ≈ 0.05 m), the induced surge Vind exceeds 100 Volts. This is more than triple the 15–30V gate dielectric breakdown ceiling of standard COTS flight controllers, permanently destroying transistor channels without thermal lag.
Architectural Comparison: Lasers vs. Vacuum HPM vs. Solid-State GaN Arrays
| Performance Parameter | High-Energy Fiber Laser (e.g. Iron Beam) | Legacy Vacuum HPM (Magnetron / Klystron) | Solid-State GaN Phased Array (e.g. Leonidas) |
|---|---|---|---|
| Primary Kill Mechanism | Thermal ablation (composite melting / fuel ignition) | High-voltage pulse latchup / thermal burnout | Dielectric gate punch-through & trace breakdown |
| Dwell Time per Engagement | 2.5 to 5.0 seconds continuous optical lock | ~1 microsecond pulse (repetitive rate ~10-50 Hz) | Sub-microsecond agile pulses |
| Swarm Neutralization Capacity | Strictly sequential (1 target at a time; 10-12/min max) | Narrow sector; fixed cavity frequency | Volumetric wide-angle cone (dozens dropped per burst) |
| Atmospheric Sensitivity | Severe (optical scattering in rain, fog, aerosol smoke) | Minimal (<0.05 dB/km attenuation in S-band) | Negligible across S-band and C-band atmospheric windows |
| Cold-Start Readiness | Chiller & mirror calibration: 30 to 60 seconds | Cathode preheat & vacuum stabilization: 10 to 20 minutes | Instantaneous solid-state boot (<2 minutes total) |
| Frequency Agility | Fixed fiber wavelength (~1.064 µm) | Fixed mechanical cavity resonance | Software-defined digital beamforming across multi-GHz |
Solid-State Phased Arrays and Dynamic Beam Steering
The fundamental breakthrough transforming microwave directed energy from experimental lab rigs into deployable tactical assets is the transition from vacuum tubes to solid-state Gallium Nitride. In systems like the Epirus Leonidas and mobile counter-UAS suites, the antenna face is composed of hundreds or thousands of individual GaN Line-Replaceable Amplifier Modules. This distributed architecture yields three critical operational advantages:
- Graceful Degradation vs Catastrophic Failure: If a high-voltage vacuum tube experiences a dielectric arc or cathode burnout, the entire weapon system goes offline. In an active electronically scanned GaN array, the failure of 5% or even 10% of individual amplifier modules results only in a minor reduction in peak effective radiated power (ERP) and beam sidelobe suppression, while the system remains completely operational.
- Software-Defined Digital Beamforming: Rather than mechanically slewing a heavy parabolic dish, the phased array manipulates the phase and amplitude of each radiating element in software. The system can instantly switch from a highly concentrated pencil beam for long-range point defense to a broad 60-degree volumetric cone that swathes an entire sector in high-intensity microwave radiation. Furthermore, software beamforming enables dynamic spatial filtering: the system can carve out nulls in the radiation pattern to avoid irradiating friendly radar installations, communication repeaters, or allied tactical vehicles operating in the direct vicinity.
- Multi-Octave Frequency Agility: Narrowband shielding, such as tuned resonant chokes or single-frequency mesh wraps, only attenuates specific microwave wavelengths. A software-defined GaN array sweeps transmission frequencies dynamically or emits multi-tone pulses across several octaves, ensuring that electromagnetic energy couples into enclosure seams at whatever harmonic frequencies the drone chassis is physically resonant with.
Tactical Limits: Capacitor Recovery and Thermal Dissipation
While solid-state microwave arrays solve the swarm throughput problem, their deployment is constrained by hard electrical engineering realities: pulse capacitor recharge duty cycles and heat rejection. An HPM system does not draw continuous gigawatts from a generator. Instead, prime power from a tactical diesel generator—typically a 200 kVA to 500 kVA military genset—charges a bank of high-energy-density pulse capacitors. These capacitors discharge their stored energy into the GaN power amplifiers in rapid, high-voltage pulses lasting between hundreds of nanoseconds and several microseconds.
The primary operational constraint is thermal dissipation. Although Gallium Nitride exhibits substantially higher power density and thermal conductivity than silicon, GaN power amplifiers operate at power-added efficiencies (PAE) between 45% and 65% in microwave pulse regimes. This means that 35% to 55% of the input electrical power is converted directly into waste heat inside compact amplifier packages. Dissipating hundreds of kilowatts of pulsed thermal energy requires advanced microchannel liquid cooling loops. If an operator fires continuous high-repetition-rate bursts for extended periods, thermal throttling algorithms must reduce the pulse repetition frequency (PRF) to prevent junction thermal runaways, creating brief recovery windows where the system cannot project full radiated power.

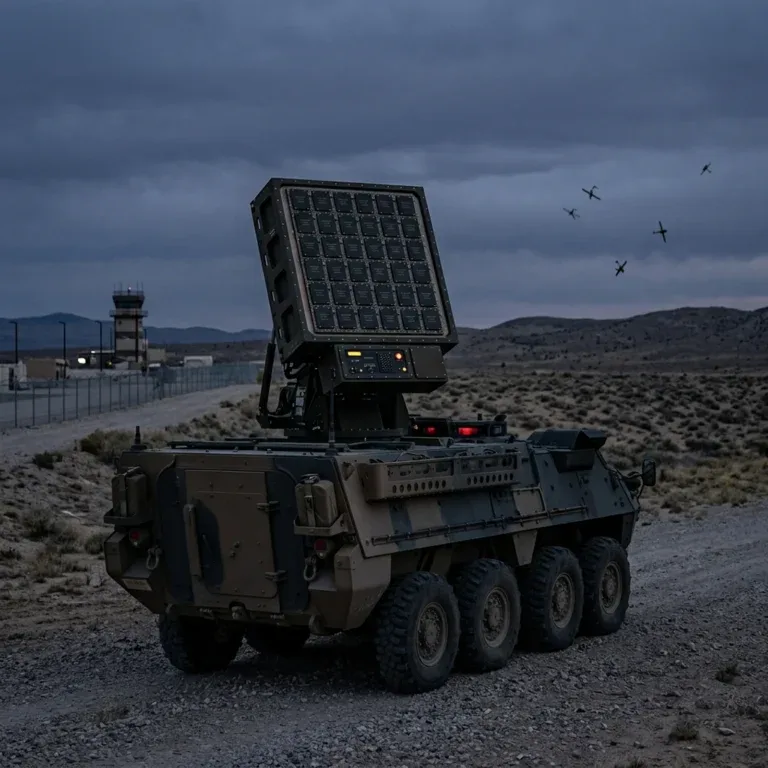

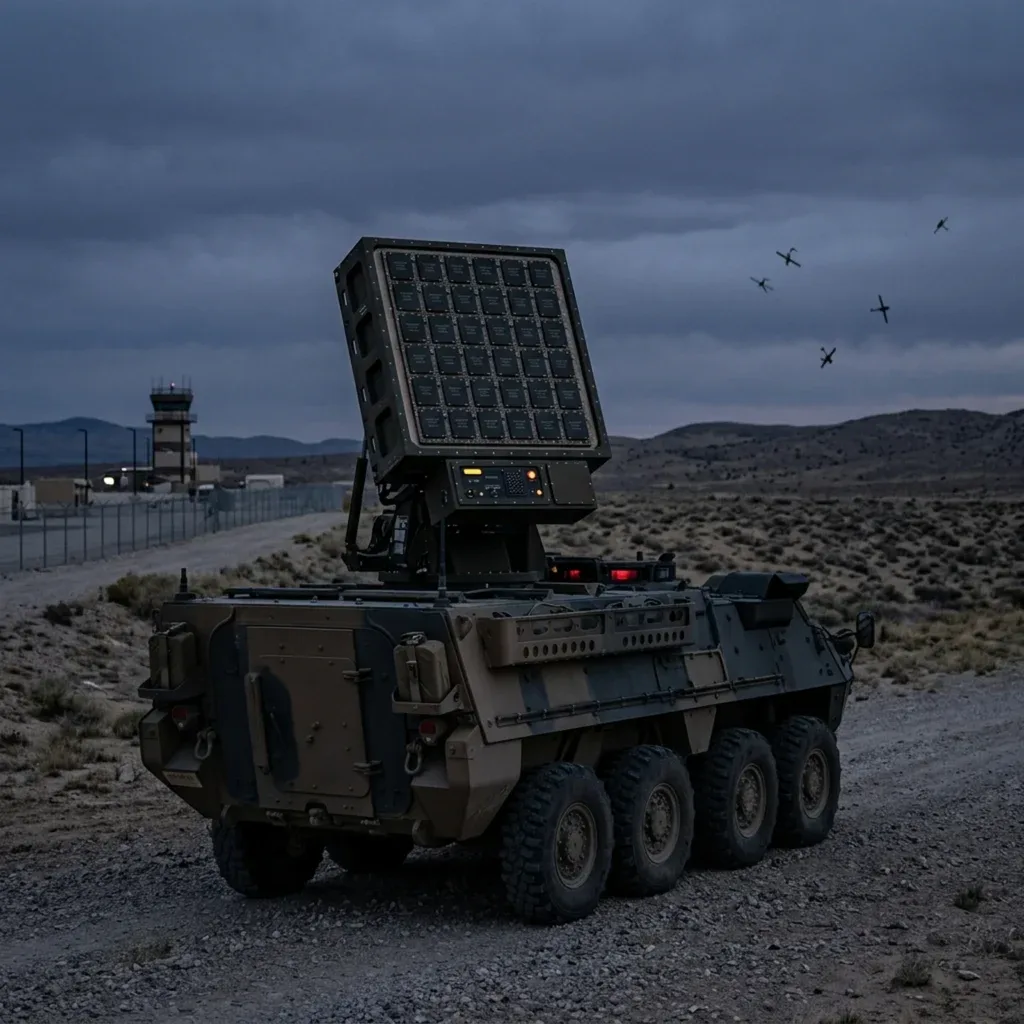

Vehicle integration imposes additional constraints on platform survivability. Mounting a multi-ton phased array, cooling chiller, and capacitor bank onto an 8×8 combat platform, such as the U.S. Army’s Stryker Leonidas integration trials, consumes the vehicle’s entire electrical and payload capacity. The vehicle becomes an active RF beacon whenever firing, making it a high-priority target for anti-radiation loitering munitions equipped with passive RF homing seekers.
Layered point defense will therefore not rely exclusively on microwaves. High-power microwave arrays provide the volumetric shield against saturation drone swarms, breaking the incoming saturation wave within 1 to 2 kilometers. For hardened targets or long-range reconnaissance assets, kinetic air defense and high-energy lasers handle the surviving individual leakers, closing the tactical kill chain across all engagement tiers.
